What is Cryogenic Handling and Why is it Important?

Introduction to Cryogenic Handling

Cryogenic handling refers to the safe management, storage, and transfer of materials at extremely low temperatures, typically below −150°C (−238°F). This specialized process is crucial when dealing with substances like liquid nitrogen, liquid helium, liquid oxygen, and liquefied natural gases (LNG). These substances are widely used across industries such as healthcare, aerospace, food preservation, energy, and research.

The term "cryogenic" itself originates from the Greek words "kryos," meaning cold, and "genic," meaning to produce. Thus, cryogenic handling focuses on producing and managing ultra-cold environments for specific applications. Since these temperatures are far beyond the capabilities of traditional cooling methods, handling them requires specialized equipment, rigorous safety protocols, and highly trained professionals.

Proper cryogenic handling is vital not only for operational efficiency but also for the safety of personnel and the protection of expensive equipment and materials. Without appropriate handling measures, the extreme cold can lead to severe injuries, environmental hazards, and costly accidents.

This article explores what cryogenic handling involves, its applications, equipment used, safety measures, training requirements, future trends, and why it remains a critical component of modern industries. Let’s dive deep into the fascinating world of cryogenics!

Understanding Cryogenic Materials

Cryogenic materials are substances that exist in a liquid or gaseous state at extremely low temperatures. Common examples include:

1. Liquid Nitrogen (LN₂): Boiling point at −196°C. Used for freezing biological samples, food preservation, and cryosurgery.
2. Liquid Helium (He): Boiling point at −269°C. Essential in MRI machines, particle accelerators, and superconductivity experiments.
3. Liquid Oxygen (LOX): Boiling point at −183°C. Widely used in aerospace propulsion and medical therapies.
4. Liquefied Natural Gas (LNG): Composed primarily of methane, used for energy production and transportation.

Each of these materials requires meticulous cryogenic handling to maintain their low-temperature states and prevent hazards. These substances are highly sensitive to temperature fluctuations, physical agitation, and exposure to moisture or contaminants.

The unique properties of cryogenic materials — such as rapid expansion upon vaporization, extreme cold-induced brittleness, and oxygen enrichment risks — make their safe management a top priority. Handling them incorrectly can result in dangerous pressure build-ups, asphyxiation, or even explosions.

Thus, understanding the physical and chemical behavior of cryogenic substances is the first step toward mastering safe and efficient cryogenic handling practices.

Equipment Used in Cryogenic Handling

Handling cryogenic materials demands specialized equipment engineered to withstand extreme cold without compromising structural integrity or operational safety. Some of the most essential tools and systems include:

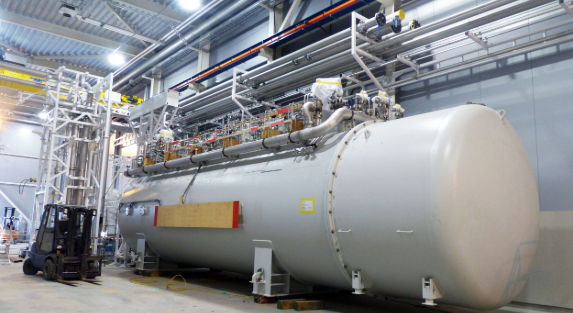

1. Cryogenic Storage Tanks

These tanks are vacuum-insulated to minimize heat transfer and maintain the low temperature of cryogenic liquids. They come in various sizes, from small dewars for laboratory use to massive tanks for industrial storage.

2. Cryogenic Transfer Lines

These insulated pipelines safely transport cryogenic fluids from one container to another, minimizing evaporation and pressure build-up.

3. Cryogenic Valves and Fittings

Designed to operate reliably at ultra-low temperatures, these components prevent leaks and ensure smooth flow control.

4. Personal Protective Equipment (PPE)

Handling cryogenic materials requires specialized gear like insulated gloves, face shields, aprons, and safety goggles to protect against cold burns and frostbite.

5. Vaporizers

Cryogenic vaporizers convert cryogenic liquids into gases by applying controlled heat, which is essential for many industrial processes.

All equipment used in cryogenic handling must meet stringent safety standards and undergo regular maintenance. Even minor flaws or wear can lead to catastrophic failures when working at such low temperatures.

Thus, investing in high-quality equipment is non-negotiable for any organization involved in cryogenic handling.

Applications of Cryogenic Handling

Cryogenic handling plays a vital role in a variety of industries, enabling processes that would be impossible with conventional technologies.

Healthcare and Medicine

Cryogenic preservation of biological samples, tissues, and reproductive cells has revolutionized modern medicine. Cryosurgery, using liquid nitrogen to destroy abnormal cells, is another common application.

Aerospace

Cryogenic fuels like liquid hydrogen and liquid oxygen power space missions. Precise cryogenic handling ensures the integrity and efficiency of rocket propulsion systems.

Energy Sector

LNG provides a cleaner alternative to traditional fossil fuels. Safe cryogenic handling allows LNG to be transported and stored across the globe.

Food Industry

Flash freezing using liquid nitrogen preserves the texture, flavor, and nutritional value of foods far better than conventional freezing methods.

Research and Development

Superconductivity experiments, particle physics research, and quantum computing advancements heavily rely on the cryogenic handling of helium and other gases.

These applications illustrate the widespread importance of cryogenic handling in advancing technology, improving healthcare outcomes, and supporting sustainable energy solutions.

Safety Measures in Cryogenic Handling

Cryogenic materials, due to their extreme cold temperatures, pose significant hazards if not handled with utmost care. Effective cryogenic handling demands a comprehensive safety approach to minimize the risks of physical injury, property damage, and environmental harm.

1. Pressure Relief Systems

Cryogenic materials can vaporize quickly when exposed to heat, creating dangerous pressure buildups in containers. Pressure relief valves, vents, and rupture discs are essential to prevent tank over-pressurization and potential explosions.

2. Proper Ventilation

Cryogenic materials like liquid oxygen and LNG can displace oxygen in the air, creating asphyxiation hazards. Adequate ventilation in storage areas and workspaces is essential to maintain safe oxygen levels.

3. Leak Detection Systems

Given the low temperatures and the potential for leaks, installing leak detection systems is essential in cryogenic facilities. Sensors that detect both gas leaks and cryogenic liquid leaks can help mitigate disasters before they escalate.

4. Fire Safety Measures

Cryogenic materials, particularly liquid oxygen, can significantly increase the flammability of nearby materials. Fire extinguishers suited for cryogenic environments, alongside a robust fire safety plan, are essential in preventing devastating fires or explosions.

5. Personal Protective Equipment (PPE)

Handling cryogenic materials requires specialized PPE to avoid frostbite, cold burns, and other injuries. Insulated gloves, safety goggles, face shields, and thermal aprons are critical for workers' safety.

6. Proper Training and Certification

The effectiveness of these safety measures depends on personnel knowledge and adherence to protocols. Workers handling cryogenic substances must undergo rigorous training and certification to ensure they understand the associated risks and how to handle them properly.

Cryogenic handling without these safety measures can lead to fatal accidents, injuries, and significant property damage, making the investment in safety protocols absolutely crucial for any organization.

Training and Certification for Cryogenic Handling

Since cryogenic handling involves extremely hazardous materials, proper training and certification are mandatory to ensure both safety and efficiency. Employees working with cryogenic substances must receive specialized education in cryogenic technology, safety protocols, and equipment handling.

1. Cryogenic Safety Courses

Specialized safety courses are available for employees who work with cryogenic substances. These courses cover topics like personal protection, safe handling practices, leak detection, emergency procedures, and equipment maintenance.

2. Hands-On Training

In addition to theoretical training, hands-on practice is essential. Employees need to become familiar with operating cryogenic equipment, handling gases and liquids, and dealing with emergency scenarios. Training simulations can help prepare them for real-world conditions.

3. Certifications

Certifications from recognized safety organizations or regulatory bodies demonstrate that employees are qualified to safely handle cryogenic materials. These certifications are often a legal requirement in industries like aerospace, healthcare, and energy.

4. Ongoing Education

Cryogenic technologies continue to evolve, and safety regulations may change. Therefore, continuous education through refresher courses and workshops is necessary to keep personnel up-to-date on the latest safety practices and equipment innovations.

This comprehensive approach to training and certification ensures that workers are prepared to handle cryogenic substances safely and competently, reducing the risk of accidents and improving operational efficiency.

Challenges in Cryogenic Handling

Despite the advancements in cryogenic technologies, the handling of cryogenic materials still presents various challenges, both technical and logistical. These challenges require innovative solutions to maintain safety, efficiency, and cost-effectiveness.

1. Cost of Equipment and Maintenance

Cryogenic handling requires specialized equipment that is often expensive to purchase and maintain. High-quality cryogenic storage tanks, transfer systems, and safety equipment represent significant capital investments. Additionally, maintenance of this equipment demands highly skilled technicians, which adds to the operational costs.

2. Temperature Control

Maintaining extremely low temperatures over long periods is challenging, especially when dealing with large quantities of cryogenic materials. Even the smallest temperature fluctuation can lead to rapid evaporation, posing both a safety hazard and a loss of material. Advanced temperature control systems are required to ensure consistent cryogenic conditions.

3. Energy Consumption

Cryogenic processes, particularly liquefaction, are energy-intensive. The production of liquid nitrogen, oxygen, and helium requires significant energy input to cool gases to cryogenic temperatures. Energy consumption can make cryogenic handling operations expensive, especially for large-scale facilities.

4. Storage and Transportation Limitations

Transporting cryogenic materials poses logistical difficulties. For instance, liquid nitrogen needs to be stored in highly insulated containers to prevent heat gain and evaporation. Similarly, LNG must be transported in specially designed cryogenic tankers, requiring careful management of storage conditions during transit.

5. Environmental Impact

While cryogenic technologies enable many advancements in energy and manufacturing, they also have environmental considerations. Cryogenic plants can consume vast amounts of water for cooling, and the release of greenhouse gases during cryogenic processes can contribute to environmental degradation if not carefully managed.

Addressing these challenges requires continuous innovation, regulatory compliance, and an unwavering commitment to safety and sustainability in cryogenic handling.

Technological Advancements in Cryogenic Handling

As industries that rely on cryogenic materials continue to grow, there have been numerous advancements in cryogenic handling technology. These innovations aim to improve safety, efficiency, and sustainability in the handling of cryogenic substances.

1. Improved Insulation Materials

One of the most significant advancements in cryogenic handling technology is the development of better insulation materials. Enhanced insulation materials in storage tanks and transportation lines help reduce heat ingress, preventing the loss of cryogenic liquids and lowering operational costs.

2. Cryogenic Robotics

Robotics has found a place in cryogenic handling, especially in high-risk environments like space exploration or deep-sea research. Cryogenic robots can handle materials at extreme temperatures, reducing the need for human interaction with hazardous substances and minimizing safety risks.

3. Advanced Monitoring Systems

Technological advancements in monitoring systems have enabled real-time temperature and pressure monitoring of cryogenic materials during storage and transport. Smart sensors and cloud-based technologies allow operators to monitor conditions remotely and receive alerts in case of temperature deviations or other potential risks.

4. Efficient Cryogenic Liquefaction Techniques

Ongoing research in cryogenics has led to more efficient liquefaction processes. These advancements help reduce the energy required to cool gases, making cryogenic handling more cost-effective and environmentally friendly.

5. Cryogenic Fuel Storage for Green Energy

Innovative cryogenic energy storage systems are being developed for renewable energy sources. Cryogenic storage systems, such as liquefied air energy storage (LAES), are being tested as a means to store and release renewable energy more efficiently.

These technological advancements make cryogenic handling more efficient, sustainable, and safer, supporting industries that rely on these technologies and enabling new applications that were once considered too costly or impractical.

Environmental Impact and Sustainability

While cryogenic handling plays a vital role in various industries, it is not without environmental challenges. The energy-intensive nature of cryogenic technologies and the risks associated with the transportation and storage of cryogenic materials necessitate careful management to reduce their ecological footprint.

1. Energy Consumption

The processes involved in cryogenic liquefaction — such as cooling gases to extremely low temperatures — consume significant amounts of energy. As a result, many cryogenic operations are looking into alternative energy sources and energy-efficient technologies to mitigate the environmental impact of energy consumption.

2. Reduction of Greenhouse Gases

Cryogenic technologies, such as liquefied natural gas (LNG), offer an opportunity to reduce greenhouse gas emissions by replacing more carbon-intensive fuels like coal and oil. However, the extraction, liquefaction, and transportation of LNG still present challenges in terms of methane leaks, which must be carefully controlled.

3. Water Usage

Cryogenic plants, especially those involved in liquefaction, often require vast amounts of water for cooling purposes. Reducing water consumption and finding alternative cooling technologies are key steps toward improving sustainability in the cryogenic industry.

4. Recycling and Waste Management

Efforts to recycle cryogenic materials and waste are gaining attention. For instance, liquid nitrogen is used for medical and industrial purposes, and the proper recycling of cryogenic by-products could help mitigate waste and improve sustainability.

Future Trends in Cryogenic Handling

As the demand for cryogenic technologies increases, new trends are emerging in cryogenic handling. These trends focus on improving the efficiency, safety, and environmental sustainability of cryogenic systems.

1. Green Cryogenics

The future of cryogenic handling is moving towards greener technologies. Efforts to reduce energy consumption, minimize environmental impact, and utilize renewable energy sources will drive the future of cryogenic handling.

2. Automation and AI

Automated systems and artificial intelligence are poised to revolutionize cryogenic handling. Advanced robotics, autonomous storage systems, and AI-based monitoring systems will enhance operational efficiency while reducing human error and risks.

3. Integration with Renewable Energy

Cryogenic technologies, especially in energy storage, are likely to integrate with renewable energy sources. Cryogenic energy storage systems are already being tested as a method to store excess renewable energy, helping balance supply and demand in power grids.

4. Cryogenic Carbon Capture

Future advancements may also focus on utilizing cryogenics for carbon capture. Cryogenic separation methods could become a key tool in capturing carbon dioxide emissions from power plants and other industrial processes, helping mitigate climate change.

Conclusion

Cryogenic handling is an essential technology with applications in various industries, including healthcare, aerospace, energy, and manufacturing. Its importance continues to grow as cryogenic materials enable advancements in science, medicine, and sustainable energy.

From ensuring the safe storage and transportation of liquid gases to supporting the future of renewable energy, cryogenic handling plays a central role in modern technological progress. As the industry advances, so too will the methods, safety protocols, and equipment used to manage these ultra-cold materials, ensuring a safer, more efficient future.

Cryogenic handling is not only an industrial necessity but also a critical component in shaping the technologies of tomorrow. Investing in proper equipment, safety measures, and training will continue to ensure that the benefits of cryogenic materials can be harnessed safely and effectively.
