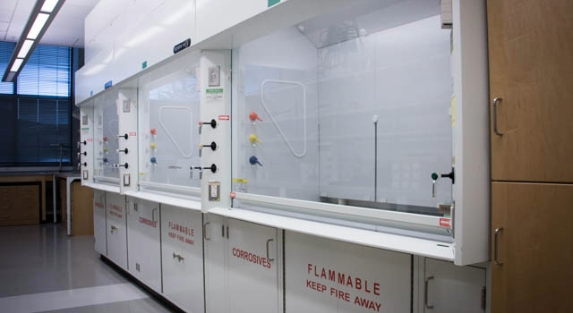

What is a Fume Hood and how does it Work?

Introduction

In laboratories, safety is paramount. Among the many safety devices used in laboratories, the fume hood stands out as one of the most essential. A fume hood is a ventilated enclosure designed to limit exposure to hazardous or toxic fumes, vapors, or dust. It is a critical piece of equipment in chemical, biological, and industrial laboratories, ensuring the safety of laboratory personnel and maintaining a controlled environment. This article will delve into the intricacies of fume hoods, exploring their purpose, types, components, working mechanisms, and maintenance. By the end of this article, you will have a comprehensive understanding of what a fume hood is and how it operates.

What is a Fume Hood?

Definition and Purpose

A fume hood, also known as a fume cupboard or exhaust hood, is a type of local ventilation device that is designed to capture, contain, and exhaust hazardous fumes, gases, vapors, and particulates away from the laboratory environment. The primary purpose of a fume hood is to protect laboratory personnel from inhaling toxic substances and to prevent the release of hazardous materials into the laboratory air.

Fume hoods are commonly used in various settings, including chemical laboratories, pharmaceutical labs, research facilities, and industrial environments. They are essential for handling volatile chemicals, conducting experiments that produce harmful byproducts, and performing procedures that generate dust or aerosols.

Importance of Fume Hoods in Laboratory Safety

Laboratories often deal with hazardous substances that can pose significant health risks if inhaled or come into contact with the skin. Fume hoods play a crucial role in mitigating these risks by providing a controlled environment for handling such materials. By capturing and exhausting harmful fumes, fume hoods help to:

1. Protect laboratory personnel from exposure to toxic substances.
2. Prevent the accumulation of hazardous gases and vapors in the laboratory.
3. Reduce the risk of fire or explosion by removing flammable vapors.
4. Maintain a clean and safe working environment.

Types of Fume Hoods

Fume hoods come in various types, each designed to meet specific laboratory needs and applications. The choice of fume hood depends on the nature of the work being conducted, the types of chemicals being used, and the level of protection required. Below are some of the most common types of fume hoods:

1. Ducted Fume Hoods

Ducted fume hoods, also known as conventional fume hoods, are the most common type of fume hood. They are connected to an external exhaust system that vents the captured fumes and vapors outside the building. Ducted fume hoods are highly effective at removing hazardous substances from the laboratory environment and are suitable for a wide range of applications.

Advantages:

1. High efficiency in removing hazardous fumes.
2. Suitable for handling a wide variety of chemicals.
3. Provides consistent and reliable ventilation.

Disadvantages:

1. Requires installation of ductwork and external exhaust system.
2. Higher energy consumption due to continuous exhaust.
3. Not portable; fixed in one location.

2. Ductless Fume Hoods

Ductless fume hoods, also known as recirculating fume hoods, are self-contained units that use filters to capture and remove hazardous fumes and vapors. Instead of venting the air outside, ductless fume hoods recirculate the filtered air back into the laboratory. These hoods are ideal for applications where ductwork installation is not feasible or for handling low-toxicity substances.

Advantages:

1. No need for ductwork or external exhaust system.
2. Portable and easy to relocate.
3. Lower energy consumption compared to ducted fume hoods.

Disadvantages:

1. Limited to handling low-toxicity substances.
2. Requires regular filter replacement and maintenance.
3. May not be suitable for highly volatile or corrosive chemicals.

3. Auxiliary Air Fume Hoods

Auxiliary air fume hoods are a type of ducted fume hood that incorporates a secondary air supply to reduce the amount of conditioned air exhausted from the laboratory. These hoods are designed to improve energy efficiency by supplying unconditioned or partially conditioned air to the hood, reducing the load on the laboratory's HVAC system.

Advantages:

1. Improved energy efficiency.
2. Reduces the amount of conditioned air exhausted.
3. Suitable for laboratories with high ventilation requirements.

Disadvantages:

1. More complex design and installation.
2. Requires a separate air supply system.
3. May not be suitable for all types of chemicals.

4. Walk-In Fume Hoods

Walk-in fume hoods are large, enclosed fume hoods that allow laboratory personnel to walk inside to perform experiments or handle large equipment. These hoods are typically used for applications that require a high level of containment or for handling large quantities of hazardous materials.

Advantages:

1. Provides a high level of containment.
2. Suitable for handling large equipment or quantities of materials.
3. Allows personnel to work inside the hood.

Disadvantages:

1. Requires a large amount of space.
2. Higher installation and maintenance costs.
3. May require additional safety measures for personnel working inside.

5. Perchloric Acid Fume Hoods

Perchloric acid fume hoods are specially designed for handling perchloric acid and other highly reactive substances. These hoods are constructed with materials that are resistant to corrosion and are equipped with wash-down systems to prevent the buildup of perchloric acid residues, which can be explosive.

Advantages:

1. Specifically designed for handling perchloric acid.
2. Resistant to corrosion and chemical damage.
3. Equipped with wash-down systems for safety.

Disadvantages:

1. Limited to specific applications.
2. Higher cost due to specialized construction.
3. Requires regular maintenance and wash-down.

6. Radioisotope Fume Hoods

Radioisotope fume hoods are designed for handling radioactive materials. These hoods are constructed with materials that provide shielding against radiation and are equipped with HEPA filters to capture radioactive particles. They are commonly used in nuclear research facilities and medical laboratories.

Advantages:

1. Provides protection against radioactive materials.
2. Equipped with HEPA filters for particle capture.
3. Suitable for handling hazardous radioactive substances.

Disadvantages:

1. Limited to specific applications.
2. Requires specialized construction and materials.
3. Higher cost and maintenance requirements.

7. Distillation Fume Hoods

Distillation fume hoods are designed for processes that involve distillation, such as the separation of liquids based on their boiling points. These hoods are equipped with features such as condensers, cooling systems, and spill containment to ensure safe and efficient distillation processes.

Advantages:

1. Specifically designed for distillation processes.
2. Equipped with condensers and cooling systems.
3. Provides spill containment for safety.

Disadvantages:

1. Limited to specific applications.
2. Requires additional equipment for distillation.
3. Higher cost and maintenance requirements.

Components of a Fume Hood

A fume hood is composed of several key components that work together to provide effective ventilation and containment of hazardous substances. Understanding these components is essential for proper operation and maintenance of a fume hood. Below are the main components of a fume hood:

1. Enclosure

The enclosure is the main body of the fume hood, consisting of the sides, back, and top panels. It is typically constructed from materials that are resistant to corrosion and chemical damage, such as stainless steel, fiberglass, or epoxy-coated steel. The enclosure provides a physical barrier that contains hazardous fumes and vapors within the hood.

2. Baffles

Baffles are adjustable panels located at the back of the fume hood that help to control the airflow within the hood. By adjusting the baffles, laboratory personnel can optimize the airflow to ensure efficient capture and containment of hazardous substances. Baffles also help to distribute the airflow evenly across the hood's work surface.

3. Sash

The sash is the movable front panel of the fume hood, typically made of safety glass or other transparent materials. The sash can be raised or lowered to provide access to the interior of the hood while maintaining a barrier between the user and the hazardous substances. The sash also helps to control the airflow and maintain the face velocity of the hood.

4. Work Surface

The work surface is the area inside the fume hood where experiments and procedures are conducted. It is typically made of materials that are resistant to chemical damage, such as stainless steel, epoxy resin, or ceramic. The work surface may also include features such as sinks, drains, or spill containment to facilitate safe and efficient work.

5. Airfoil

The airfoil is a curved or angled panel located at the front edge of the work surface. It helps to streamline the airflow into the hood, reducing turbulence and improving the capture efficiency of hazardous fumes and vapors. The airfoil also helps to prevent the escape of contaminants from the hood.

6. Exhaust System

The exhaust system is responsible for capturing and removing hazardous fumes and vapors from the fume hood. In ducted fume hoods, the exhaust system consists of ductwork, fans, and an external exhaust stack that vents the air outside the building. In ductless fume hoods, the exhaust system includes filters that capture and remove contaminants before recirculating the air back into the laboratory.

7. Blower

The blower, or fan, is a critical component of the exhaust system that generates the airflow necessary to capture and remove hazardous substances from the fume hood. The blower must be properly sized and maintained to ensure adequate airflow and ventilation.

8. Control Panel

The control panel is the interface that allows laboratory personnel to monitor and control the operation of the fume hood. It typically includes controls for adjusting the sash height, setting the face velocity, and monitoring the airflow. Some fume hoods may also include alarms or indicators to alert users to potential issues, such as low airflow or filter saturation.

9. Lighting

Lighting is an essential component of a fume hood, providing illumination for the work area inside the hood. Fume hood lighting is typically designed to be explosion-proof and resistant to chemical damage. Proper lighting is important for ensuring visibility and safety during experiments and procedures.

10. Utilities

Fume hoods may be equipped with various utilities to support laboratory work, such as electrical outlets, gas taps, water faucets, and vacuum lines. These utilities are typically integrated into the hood's design and are located within easy reach of the work surface.

How Do Fume Hoods Work?

Basic Principles of Operation

The primary function of a fume hood is to capture, contain, and exhaust hazardous fumes, vapors, and particulates away from the laboratory environment. This is achieved through a combination of airflow, containment, and exhaust mechanisms. Below is a step-by-step explanation of how a fume hood works:

1. Airflow Generation: The blower or fan in the exhaust system generates a flow of air that enters the fume hood through the front opening (face) and moves towards the back of the hood. This airflow creates a negative pressure inside the hood, which helps to capture and contain hazardous substances.
2. Capture of Contaminants: As air enters the fume hood, it carries with it any fumes, vapors, or particulates generated during experiments or procedures. The airflow is designed to capture these contaminants and prevent them from escaping into the laboratory environment.
3. Containment: The enclosure, sash, and airfoil work together to contain the hazardous substances within the fume hood. The sash acts as a barrier between the user and the contaminants, while the airfoil helps to streamline the airflow and reduce turbulence. The enclosure provides a physical barrier that prevents the escape of contaminants.
4. Exhaust of Contaminants: The captured contaminants are carried by the airflow through the baffles and into the exhaust system. In ducted fume hoods, the contaminants are transported through ductwork and vented outside the building. In ductless fume hoods, the contaminants are captured by filters, which remove the hazardous substances before recirculating the air back into the laboratory.
5. Maintenance of Face Velocity: The face velocity is the speed at which air enters the fume hood through the front opening. Maintaining an appropriate face velocity is critical for ensuring effective capture and containment of contaminants. The face velocity is typically measured in feet per minute (fpm) and should be within a specified range (usually 80-120 fpm) to ensure safe and efficient operation.

Factors Affecting Fume Hood Performance

Several factors can affect the performance of a fume hood, including:

1. Face Velocity: The face velocity must be carefully controlled to ensure effective capture and containment of contaminants. If the face velocity is too low, contaminants may escape into the laboratory. If the face velocity is too high, it can create turbulence and reduce the hood's efficiency.
2. Sash Position: The position of the sash can significantly impact the airflow and containment of the fume hood. Lowering the sash reduces the open area of the hood, increasing the face velocity and improving containment. Raising the sash increases the open area, reducing the face velocity and potentially allowing contaminants to escape.
3. Airflow Patterns: The design of the fume hood, including the baffles and airfoil, affects the airflow patterns within the hood. Properly designed airflow patterns help to ensure efficient capture and containment of contaminants.
4. Laboratory Environment: The overall ventilation and airflow in the laboratory can impact the performance of the fume hood. Factors such as the placement of the fume hood, the presence of other ventilation devices, and the layout of the laboratory can all affect the hood's ability to capture and contain contaminants.
5. Maintenance and Calibration: Regular maintenance and calibration of the fume hood are essential for ensuring optimal performance. This includes checking and adjusting the face velocity, inspecting and replacing filters (in ductless hoods), and ensuring that all components are functioning properly.

Maintenance and Safety Considerations

Regular Maintenance

Proper maintenance is essential for ensuring the safe and efficient operation of a fume hood. Regular maintenance tasks include:

1. Inspection: Regularly inspect the fume hood for any signs of damage, wear, or malfunction. Check the sash, baffles, airfoil, and enclosure for any issues that may affect performance.
2. Cleaning: Keep the fume hood clean and free of debris. Clean the work surface, sash, and interior of the hood regularly to prevent the buildup of contaminants.
3. Filter Replacement: In ductless fume hoods, regularly inspect and replace the filters as needed. Follow the manufacturer's recommendations for filter replacement intervals and procedures.
4. Calibration: Periodically calibrate the fume hood to ensure that the face velocity and airflow are within the specified range. This may involve adjusting the blower speed, baffles, or other components.
5. Testing: Conduct regular testing of the fume hood to verify its performance. This may include smoke tests to visualize airflow patterns and containment, as well as face velocity measurements.

Safety Considerations

In addition to regular maintenance, there are several safety considerations to keep in mind when using a fume hood:

1. Proper Use: Always use the fume hood for its intended purpose and follow the manufacturer's guidelines for operation. Avoid using the hood for procedures that generate excessive heat or pressure, as this can affect its performance.
2. Sash Position: Keep the sash at the recommended height during use to maintain proper face velocity and containment. Lower the sash when the hood is not in use to conserve energy and reduce the risk of contaminants escaping.
3. Personal Protective Equipment (PPE): Always wear appropriate PPE, such as gloves, goggles, and lab coats, when working in a fume hood. This provides an additional layer of protection against exposure to hazardous substances.
4. Chemical Compatibility: Ensure that the fume hood is compatible with the chemicals being used. Some chemicals may require specialized fume hoods or additional safety measures.
5. Emergency Procedures: Familiarize yourself with the laboratory's emergency procedures, including the location of emergency exits, eyewash stations, and safety showers. Know how to respond in the event of a spill, fire, or other emergency.

Conclusion

Fume hoods are an essential component of laboratory safety, providing protection against hazardous fumes, vapors, and particulates. Understanding the different types of fume hoods, their components, and how they work is crucial for ensuring their effective operation and maintenance. By following proper maintenance and safety practices, laboratory personnel can create a safe and controlled environment for conducting experiments and handling hazardous materials.

Whether you are working in a chemical laboratory, a research facility, or an industrial setting, a fume hood is a vital tool for protecting your health and safety. By choosing the right type of fume hood for your needs and maintaining it properly, you can ensure a safe and productive laboratory environment.
