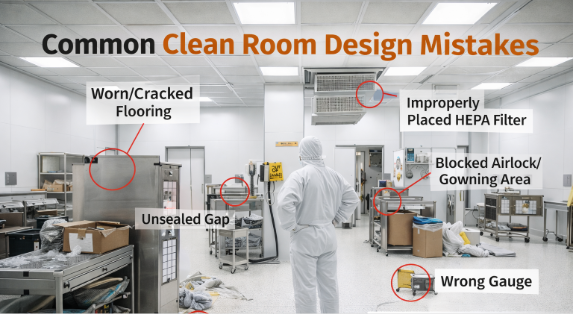

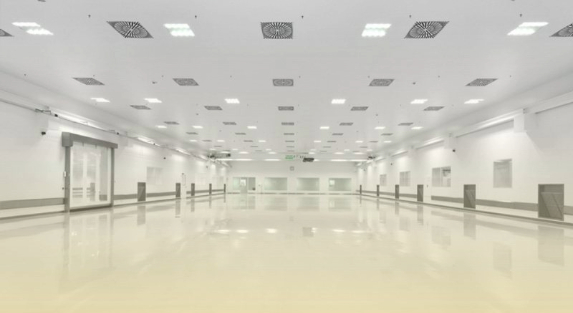

Top 10 Cleanroom Design Mistakes

Cleanrooms are specialized environments designed to control contamination by regulating parameters such as air quality, temperature, humidity, and particle count. The design and construction of cleanrooms are crucial, particularly in industries like pharmaceuticals, electronics, biotechnology, and aerospace, where contamination can have severe consequences. However, cleanroom design is complex and prone to mistakes that can compromise the room's integrity and performance.

In this article, we will explore the top 10 cleanroom design mistakes.  We'll dive deep into each mistake, discussing why it happens, the impact it has on cleanroom performance, and how to avoid it. This guide will help you navigate common pitfalls in cleanroom design, ensuring efficiency and contamination control for your facility.

1. Failing to Understand Process Requirements

One of the most fundamental mistakes in cleanroom design is failing to align the design with the specific requirements of the processes that will occur within the cleanroom. Cleanrooms vary in their classification depending on the industry, and misunderstanding these classifications can lead to an inadequate design.

Why It Happens: Designers or project managers may not fully grasp the intricacies of the cleanroom's intended purpose. Without thorough research and consultation with process engineers, it's easy to create a design that doesn't meet operational needs.

Consequences: An improperly classified cleanroom can lead to contamination, product recalls, or operational downtime due to non-compliance with industry standards like ISO 14644 or GMP (Good Manufacturing Practice).

How to Avoid It:

• Collaborate with stakeholders from the beginning, including process engineers, quality assurance, and production teams.
• Define the cleanroom's purpose, including its cleanliness classification, air change rates, pressure differentials, and temperature/humidity control.
• Align the cleanroom design with the required ISO classification or regulatory standards.

2. Improper Airflow Design

Airflow design is the heart of contamination control in a cleanroom. Improper airflow patterns, such as turbulent flow or ineffective unidirectional flow, can lead to contamination buildup and inadequate removal of particles.

Why It Happens: Inadequate planning, improper layout, and lack of knowledge regarding airflow dynamics can result in this common mistake. Designers may overlook the critical role of air filtration, laminar airflow, or placement of diffusers.

Consequences: Poor airflow design can lead to stagnation points, areas of contamination concentration, or cross-contamination between clean zones.

How to Avoid It:

• Conduct a detailed airflow analysis during the design phase.
• Design with either laminar flow (unidirectional) or turbulent flow systems, depending on the cleanroom class.
• Use HEPA (High-Efficiency Particulate Air) filters strategically to ensure proper filtration and uniform airflow distribution.

3. Neglecting Personnel and Equipment Flow

One of the most underestimated aspects of cleanroom design is the flow of personnel and equipment. Proper management of these movements is critical for contamination control. Neglecting the appropriate placement of airlocks, gowning areas, or clean corridors can introduce contaminants into the controlled environment.

Why It Happens: Inexperienced designers may overlook how personnel or equipment will move through the cleanroom and adjacent areas. This can result in contamination from personnel not following proper procedures or from introducing contaminated materials.

Consequences: Contaminants may enter the cleanroom if personnel and equipment are not properly decontaminated or moved through correct pathways. This can lead to significant operational delays and product failure.

How to Avoid It:

• Clearly define the flow of people and equipment during the design phase.
• Include appropriate airlocks, gowning areas, and decontamination stations.
• Consider separate pathways for personnel and equipment where possible to minimize contamination risks.

4. Overlooking Pressure Differentials

Maintaining proper pressure differentials between cleanroom areas of varying cleanliness is essential. Positive pressure should be maintained in cleaner zones, while less clean areas should be at a lower pressure. Incorrect pressure balancing can lead to contamination influx from less clean zones.

Why It Happens: Pressure balancing is a delicate aspect of cleanroom design and is often misunderstood. Designers may neglect to install proper sensors or fail to consider pressure cascade principles.

Consequences: Failure to maintain proper pressure differentials can result in unfiltered air flowing from lower-classified areas into cleaner zones, increasing contamination risk.

How to Avoid It:

• Design a pressure cascade system that ensures clean air moves from higher pressure to lower pressure areas.
• Install monitoring systems for real-time pressure readings.
• Regularly test pressure differentials during operations and address any inconsistencies.

5. Choosing Inappropriate Materials

The materials used in the construction of cleanrooms must be non-shedding, easy to clean, and resistant to microbial growth. Choosing inappropriate materials for walls, floors, ceilings, or equipment can introduce contaminants over time.

Why It Happens: Cost-cutting measures or lack of understanding of cleanroom requirements often lead to the selection of materials that are not suitable for controlled environments.

Consequences: Non-compliant materials can degrade, shed particles, or harbor microbes, leading to contamination and increased maintenance costs.

How to Avoid It:

• Use materials specifically designed for cleanroom environments, such as seamless epoxy flooring, stainless steel surfaces, and non-porous wall panels.
• Consider cleanability and durability when selecting materials.
• Consult industry standards to ensure material compliance.

6. Inadequate HVAC System Design

The HVAC (Heating, Ventilation, and Air Conditioning) system is a critical component in cleanroom design. An improperly sized or inefficient HVAC system can result in unstable temperatures, humidity levels, and contamination risks.

Why It Happens: Designers might underestimate the HVAC load required for proper temperature and humidity control, or fail to account for future expansion or changes in cleanroom classification.

Consequences: Temperature and humidity fluctuations can affect product quality and employee comfort, while improper filtration may lead to contamination.

How to Avoid It:

• Size the HVAC system based on the specific needs of the cleanroom, including future scalability.
• Include high-efficiency filtration systems, such as HEPA or ULPA (Ultra-Low Penetration Air) filters, to remove particulates.
• Regularly maintain and monitor HVAC systems for optimal performance.

7. Failing to Plan for Maintenance


Ongoing maintenance is a key factor in ensuring the long-term functionality and cleanliness of a cleanroom. Failing to plan for easy maintenance access can result in increased downtime and contamination risks during repairs or cleaning.

Why It Happens: During the design phase, maintenance considerations are often overlooked, especially regarding how easily equipment or infrastructure can be accessed for repair or cleaning.

Consequences: Difficult-to-access areas can lead to prolonged downtime, increased maintenance costs, and contamination risks when maintenance crews disrupt the cleanroom environment.

How to Avoid It:

• Design with maintenance in mind by providing easy access to critical components, such as filters, fans, and HVAC units.
• Use modular components where possible for easier replacement and cleaning.
• Create a comprehensive maintenance plan and schedule from the beginning.

8. Ignoring Energy Efficiency

Cleanrooms are energy-intensive environments due to the high demand for HVAC systems, lighting, and equipment. Ignoring energy efficiency in the design phase can result in excessive operational costs over time.

Why It Happens: Energy efficiency is often sacrificed in favor of upfront cost savings, or designers may not consider long-term operational costs during the planning phase.

Consequences: High energy consumption leads to elevated operational costs, making the cleanroom more expensive to run and maintain in the long term.

How to Avoid It:

• Incorporate energy-efficient HVAC systems, such as variable speed drives and energy recovery systems.
• Use LED lighting or other energy-saving alternatives.
• Ensure proper insulation and sealing to reduce energy loss.
• Conduct an energy audit to identify areas for improvement.

9. Poor Documentation and Validation

A cleanroom must undergo rigorous validation to ensure it meets industry standards. Failing to document the design process or validate the cleanroom properly can result in non-compliance with regulatory bodies, leading to delays and additional costs.

Why It Happens: The validation process can be tedious and time-consuming, leading some to overlook its importance or rush through it. Additionally, incomplete or inaccurate documentation can delay approval from regulatory agencies.

Consequences: Without proper validation, the cleanroom may not meet required standards, leading to costly redesigns, project delays, or even shutdowns.

How to Avoid It:

• Follow a robust commissioning and validation plan, including IQ (Installation Qualification), OQ (Operational Qualification), and PQ (Performance Qualification).
• Document every step of the design, construction, and validation processes.
• Work with experienced cleanroom validation experts to ensure compliance with relevant standards and regulations.

10. Lack of Flexibility for Future Expansion

Cleanrooms must be adaptable to accommodate future needs, such as increased production capacity or changes in technology. Designing a cleanroom that is too rigid can make future expansion costly and difficult.

Why It Happens: Designers may prioritize immediate needs without considering the long-term growth or evolution of the business.

Consequences: Lack of flexibility can result in expensive retrofitting or the need to build a completely new cleanroom when production demands increase.

How to Avoid It:

• Design with modularity in mind, allowing for future expansion or reconfiguration.
• Plan for scalable HVAC systems, electrical infrastructure, and cleanroom classification upgrades.
• Work with stakeholders to understand long-term goals and future-proof the cleanroom design.

 Conclusion

Designing a cleanroom is a highly specialized process, and even small mistakes can have significant consequences on both operational efficiency and regulatory compliance. By avoiding these top 10 cleanroom design mistakes, you can ensure that your cleanroom operates at peak performance while meeting all required standards. Successful cleanroom design requires careful planning, collaboration with stakeholders, and a thorough understanding of cleanroom principles. From airflow design to material selection and future scalability, each aspect of the cleanroom must be carefully considered to avoid costly errors and ensure long-term success.
